Product Details:
Payment & Shipping Terms:
|
| Steel Grade: | High Tensile Steel Q345B | Surface Treatment: | Hot Dip Galvanization And Color Painting |
|---|---|---|---|
| Port: | Qingdao Port | Structure: | Lattice Steel Tube |
| Voltage: | 110KV | Circuit: | Double |
| High Light: | steel pole tower,overhead line tower |
||

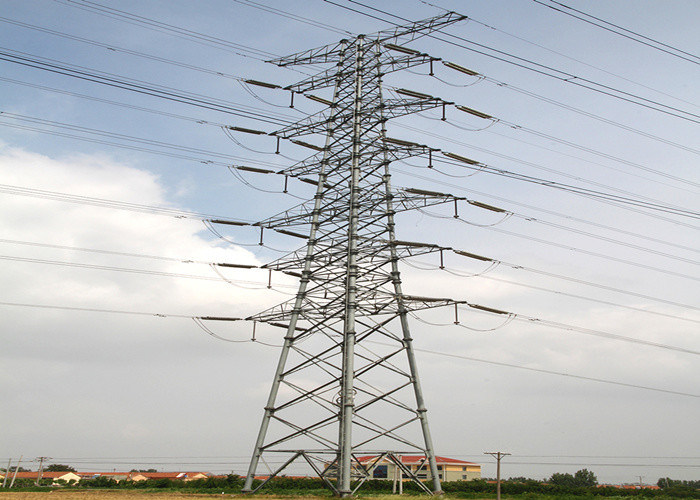

110KV Double Circuit Electrical Transmission Tower Steel Tube Pole Lattice Tower
1. Production decription
Qingdao Liangta Steel Structure Co., Ltd. ,are manufacturing this kind of steel tube electric transmission tower since 2009.
I have been in this field close 10 years ,seen a lot of things happened in our industry ,In the beginning few years ,i think i know steel tower very well ,while apparently ,i did not .
I am aggie ,the sale manager of liangta steel .if you have more ideas or want to get a price ,please contact me to communicate.
| Height | From 10M-100M or according to client’s requirement | |||||
| Suit for | Electric Power Transmission and Distribution | |||||
| Shape | Steel tube lattice tower | |||||
| Material | Q235B/A36,Yeild Strength≥235MPa | |||||
| Q345B/A572,Yeild Strength≥345MPa | ||||||
| Voltage | 10kV to 750kV | |||||
| Tolerance of the dimension | +_2 | |||||
| Surface treatment | Hot-dip-galvanized or painting | |||||
| Joint of Poles | Flange | |||||
| Standard | ISO9001:2008 | |||||
| Welding Standard | AWS(American Welding Society)D 1.1 | |||||
| Production Process | Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages | |||||
| Packages | Packing with plastic paper or according to client’s requirement | |||||
2. Product capacity
We have 5 auto production line for electric transmission angle steel towers Manufacturing,We can supply 3000 tons lattice steel tower
every month .Else we have enogh site for installing more production line if needed.
We also have plasma cutting machine ,14m bending machine and auto welding machines for pole towers .
3. Technical support
Our engineer and drawer has lots of designing ,lofting experience of lattice steel towers .
Which we can supply a overall solution of all the towers .
| Service you can get from our engineer | tower design,tower lofting ,tower weight calculation and loading plans |
| Software they used | TTA,STWXP,TMA,LMA,Daoheng |
4. Quality control
We have very strict quality control in every steel towers .
Material incoming control:chemical and physical test
Zinc coating thinknes inspection
• Qualification Certificates:
• -Environmental Management System Certificate: ISO14001:2015
• -Quality Management Systems Certificate: ISO9001:2015
• -Established Occupational Health and Safety Management Systems Certificate: OHSAS 18001:2007
We usually has two ways of trial assembly for lattice steel towers : trial assembly before galvanzation
and after galvanization.
6. Hot dip galvanization and painting
7. Package and delivery
Package we usually do as our clients requirment .Usually for angle steel towers,We use steel wire to make it into bundle and use special material to protect the Zinc.
8. Product catalogue:
